Hidden secrets in the Power BI report metadata

Key Takeaways

• Power BI reports can be difficult and time-consuming to format the way you want. There are many specific options that aren’t available, and setting up bespoke formatting for visuals takes a lot of time.
• You can modify report metadata to create visuals that aren’t possible in the UI. With the Power BI enhanced report format (PBIR) for report metadata, it’s supported to modify the metadata. Recent enterprising community members have discovered patterns that render in visuals, despite not being available in the UI.
• These metadata-driven patterns aren’t feasible for humans, but are for AI agents. Coding agents like Claude Code can modify the PBIR metadata to format your visuals in natural language. They can also create these bespoke visual and formatting.
• Agentic report development is possible, but complex. While agents can work with report metadata, the truth is that there’s many layers of complexity and nuance that makes this very difficult, fragile, and time-consuming. Agents must be aware of the semantic model, theme, DAX, and rendering engine as well as report metadata. It’s easier for agents to focus on custom visuals like R, Python, or Deneb.

This summary is produced by the author, and not by AI.

Conditionally formatting lines in a Power BI line chart

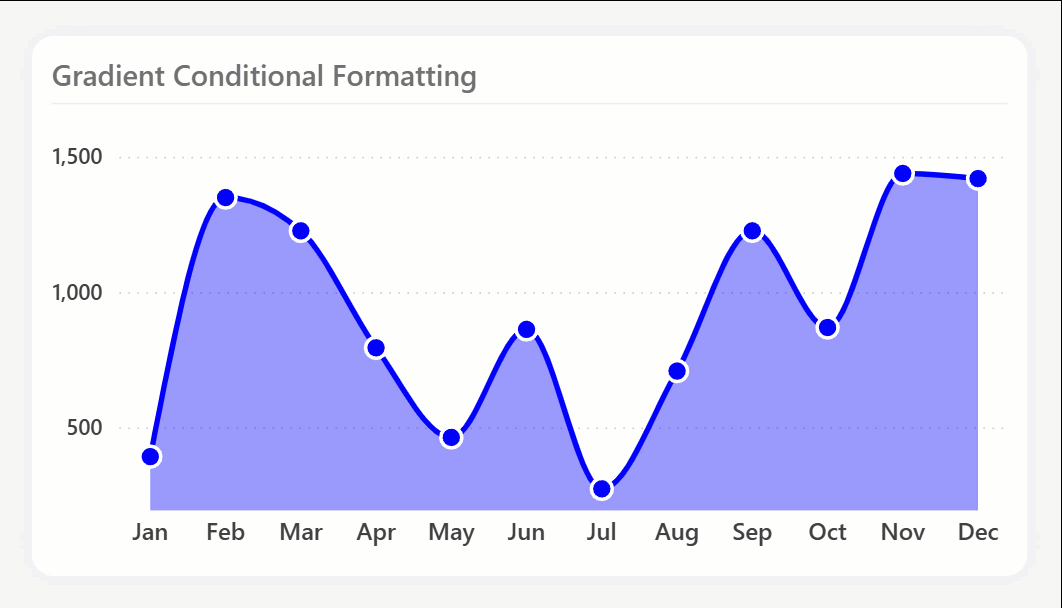

The core visuals of Power BI reports continue to improve every month. However, there are still many properties and formatting options which are unavailable. An example is the conditional formatting of a line in a line chart, like in the following demonstration:

As you can see, the line, area, and markers change colors depending on whether they are above or below zero. We’ll explain how to create this chart in Power BI later in this article.

Previously, this design was only possible with various workarounds or custom visuals. These workarounds often involve complex “MacGuyvering” of the visual configuration, bending the visuals to behave in ways that are unintuitive and difficult to maintain. They also typically involve DAX patterns or multiple measures that can lead to performance woes. Indeed, many of the “slow reports” one encounters in the wild are not due to bad DAX or models per se, but more because people are trying to get Power BI visuals to behave a certain way; to show the data the way they want to. This isn’t ideal, but some recent discoveries have made things even more interesting.

Recently, Marcus Wegener, Rahat Qayyum and others demonstrated a curious technique, whereby you could manipulate Power BI report metadata to achieve conditional formatting of certain properties and visuals that the Power BI user interface doesn’t support. Yet, the visual will still render and behave normally. This isn’t exclusive to colors and titles, but also other properties like chart layouts. While interesting, this is also problematic:

• It’s easy to make a mistake and “break” the visual or get a result that doesn’t render.
• To make changes you must read and modify the JSON; you can’t use the UI.
• This isn’t documented and works in some scenarios or visualTypes, but not others.

In this article, we’ll demonstrate and extend this scenario and explain how you can use it to create the visual demonstrated above. Further, we’ll discuss what this means in the context of agentic report development; when a coding agent modifies the PBIR metadata directly to help report authors save time and format reports.

The scenario: conditionally format a line in a line chart

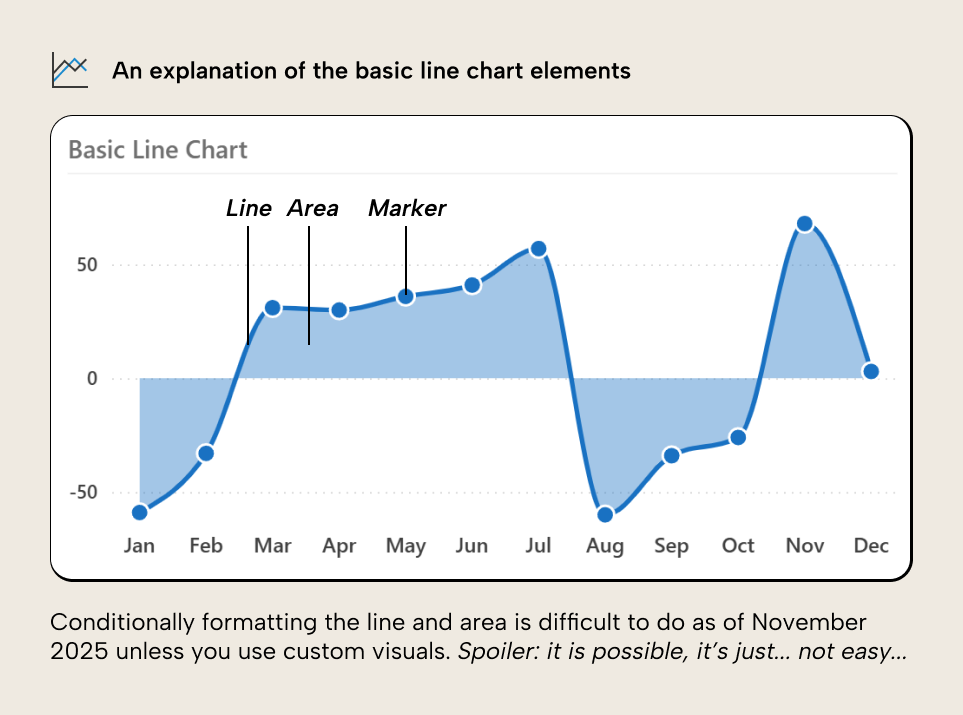

In this scenario, we want to conditionally format the line, area, and markers of a line chart:

The goal is to produce the chart we demonstrated previously, where these chart elements are conditionally formatted depending on whether they are above or below the zero line

In this scenario, we will make the chart by using the Power BI core visuals, alone.

Conditionally formatting a line with the user interface

In the line or area chart of Power BI, we can easily create the basic chart. The problem, however, lies in the conditional formatting. As of October 2025, there’s no support for conditionally formatting lines. We could manually set the formatting for each month to achieve the desired, result, but this is not dynamic.

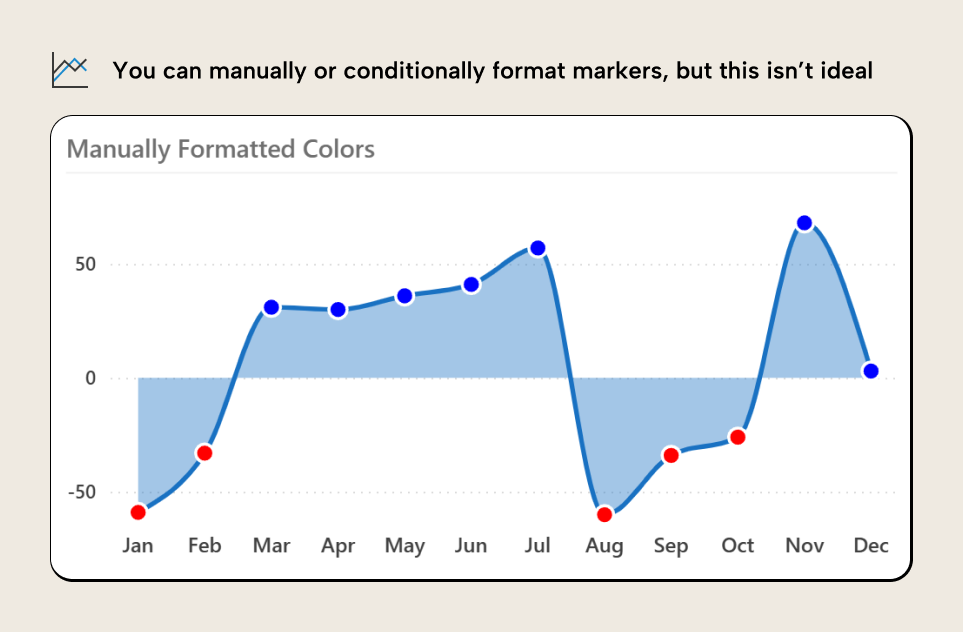

There are workarounds to conditionally format the line markers. Specifically, you can set conditional formatting in a bar chart, then switching to a line chart, which produces the following result:

This obviously isn’t what we want. We want to format the line and not just its markers. Adding markers often tends to make line charts less effective because it takes the focus away from the slope and trend, and places it more on the discrete points; if the markers are important, you might as well just use the bar chart, honestly.

To continue this journey, however, there are also workarounds where you use two measures which are distinct series assigned their own color. You can conditionally hide them using DAX. Each of the below measures become their own series:

Demo Order Lines (Above Zero) :=
VAR _Value = [Demo Order Lines]
RETURN
    IF(_Value >= 0, _Value, BLANK())
Demo Order Lines (Above Zero) :=
VAR _Value = [Demo Order Lines]
RETURN
    IF(_Value < 0, _Value, BLANK())

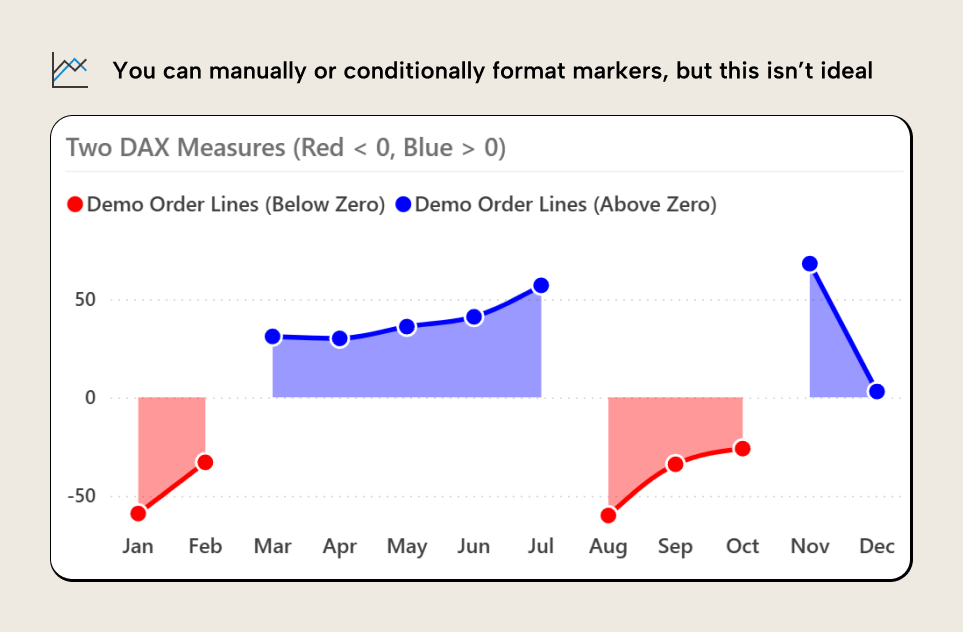

Still, the result is clearly not ideal:

We can push this further with additional MacGuyvering: error bar shading, SVGs, and so forth. Things get even more complex when you want to format the line relative to another series, as Daniel Marsh-Patrick explains very well in this article. So now we flip the table, throw our laptop out the window, and go home, right?

Conditionally formatting the line

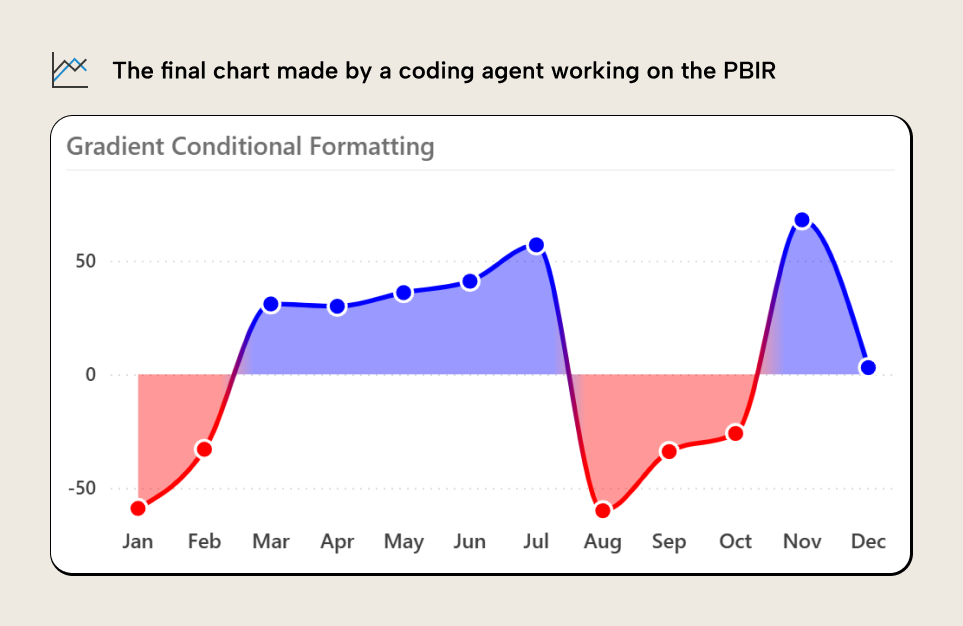

As we spoiled at the beginning of this article, it’s possible to get the result if we modify the visual metadata in a very specific way:

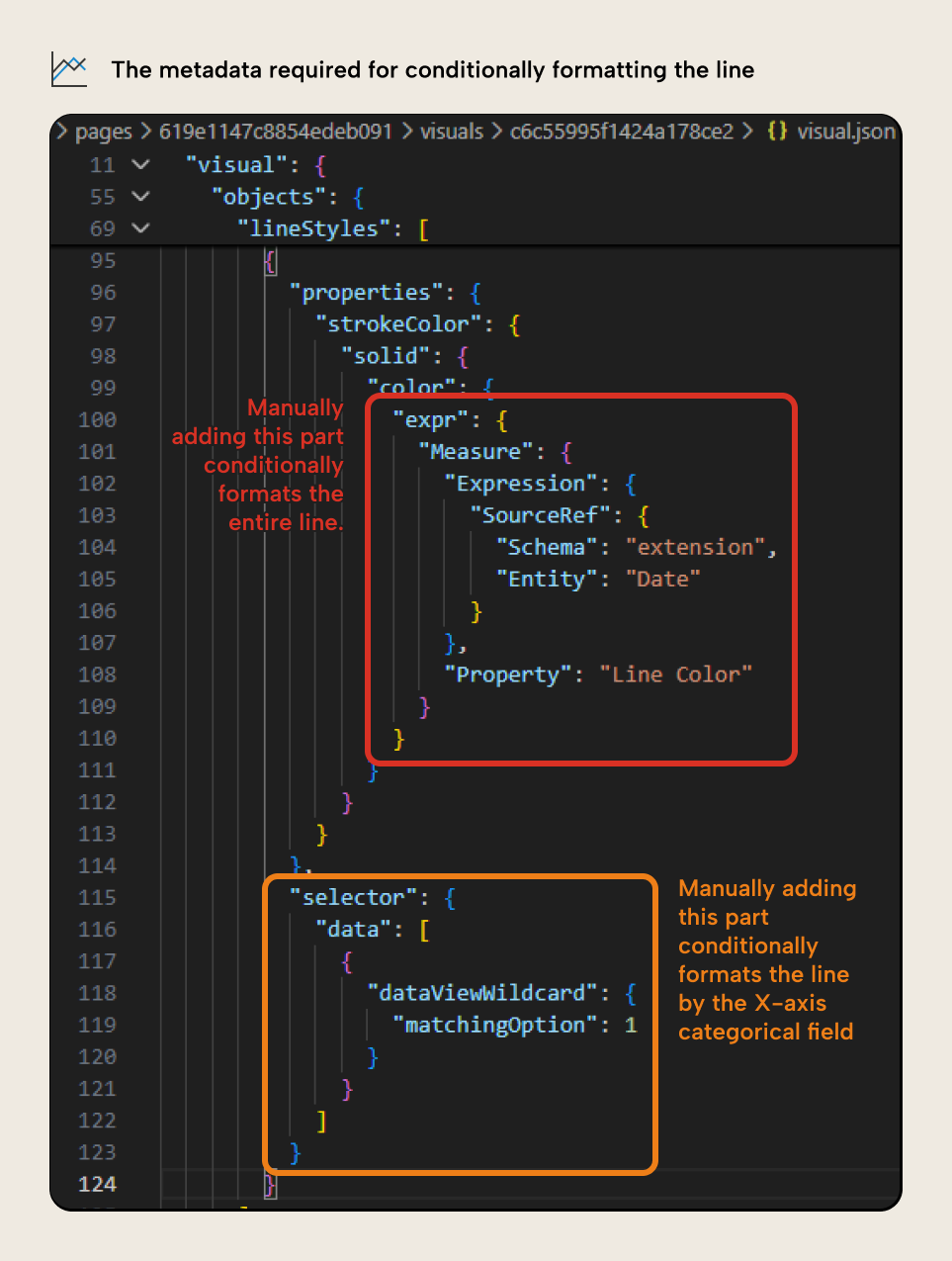

To get this result we must make the following metadata changes:

The first change (in red) replaces a “Literal” value with the “Measure” reference, making it dynamic. The measure defines conditional formatting, as described in this article. This is what others in the Power BI community have described previously; it allows you to dynamically control many (but not all) properties in the visual. This is fairly obvious to understand.

However, the second property change (in orange) is less obvious. Reading it, you’d likely not understand it unless you have developed custom visuals before or you are intimately familiar with the Power BI report metadata. In short, this property makes it so that the filter context of the conditional formatting is applied not by line series but by line part, where “part” is the X-axis categories (month, in this case).

So, how did we figure this out? Well, we didn’t. Claude Code did.

Agentic development of Power BI reports

To get this result, we provided Claude Code the requirements and several examples of line charts and other visuals with conditional formatting. Then, we gave Claude Code free reign over the metadata and (using the Fabric CLI) the ability to publish reports, then (with the Playwright MCP server) “view” them. The coding agent continued in iterative loops under human supervision, until it produced the desired result (after many, many iterations).

This is an example of agentic report development, where the coding agent directly modifies the report metadata. This is similar to agents who modify TMDL files. However, it is much, much more complex, for reasons like the following:

• The report metadata files are JSON which are heavily nested and hard to understand.
• The metadata files contain references to fields, tables, and data points, so the agent must be aware of both the semantic model and the report.
• The metadata references the report theme, which can be a very large JSON file that the agent will struggle to work with and understand.
• There are many inconsistencies in the metadata which causes agents to become confused.
• Agents must understand DAX, including model measures, thin report measures, and visual calculations.
• Agents must also occasionally work with other languages, like Python, R, and Vega or Vega-Lite (for Deneb).
• Many properties in the metadata do not align with their nomenclature in the user interface of Power BI, and they are often used in ways that aren’t intuitive (like error bars used as target lines for bar charts).

In short, coding agents are much more likely to make mistakes when they work with report metadata than when they work with semantic model metadata. While they can help with making simple changes or finding patterns, they struggle with anything bespoke or complex.

Here’s where coding agents do work well with report metadata:

• Making bulk changes (like titles, visual size, color changes, etc.) with good instructions.
• Manipulating files (copying, removing, moving)
• Templatizing reports (taking an example of a visual and inserting it into your report with the correct fields and formatting based on your instructions).
• Working with custom visuals.

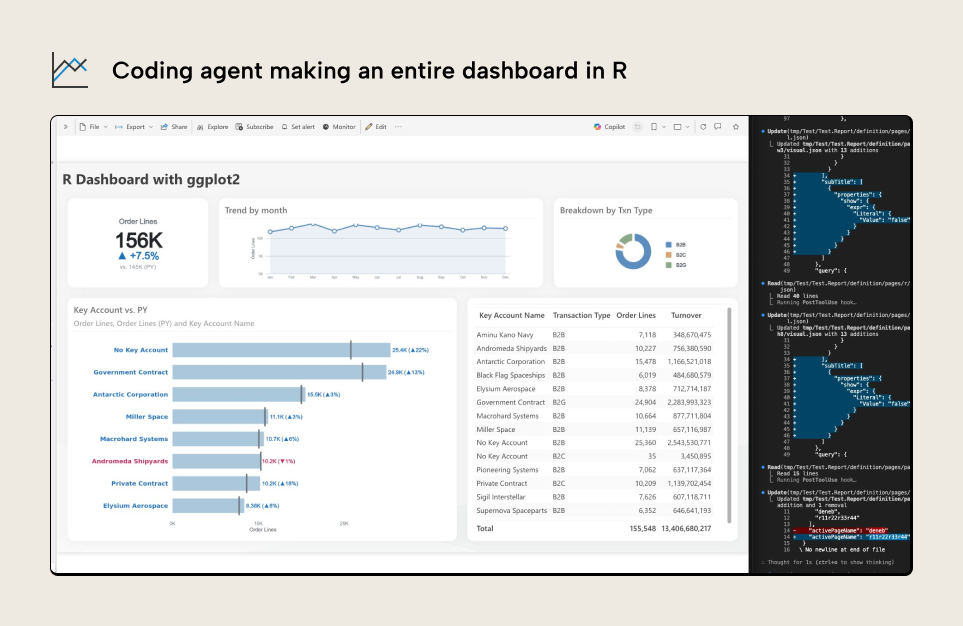

The last example is perhaps the most interesting. You can easily get a coding agent to make entire reports and dashboards from Python or R, alone, like the following example:

However, the reality is that report metadata is complex and nuanced, and agentic development – while possible – demands more effort from a human orchestrator. We’ve been investigating this in detail with others in the community, and exploring tools to make this easier.

In summary, there is a clear opportunity for coding agents to not only help you save time but also do more than what the user interface permits. For now, this is dangerous and fragile. In the future, this will unlock more possibilities of the reporting layer in Power BI.

In conclusion

Formatting and managing Power BI reports takes a lot of time, and can be a frustrating exercise in playing hide-and-seek with formatting pane menus. There’s many options that aren’t available, or that aren’t obvious in the UI. You can modify the Power BI report metadata directly if it’s in the PBIR format, either manually or with scripting, which can produce novel and interesting results. However, this gets much more interesting with coding agents, who can even find new patterns. In practice, though, this is still a fragile and difficult process; agentic report development demands more of an agent than semantic model development does.

Still, the right orchestration can yield interesting results, especially with custom visuals.
