How to Get Value from the TE CLI

Key takeaways

• The CLI enables new workflows: The TE3 CLI enables specific workflows that weren't possible before, including semantic model work on macOS and Linux, agentic development with a command-line tool, and automated testing.
• It amplifies what you already have: If you have existing investments in TE3 such as C# scripts, the CLI amplifies existing work so you get more value from what you already have.
• Start by exploring a model: The easiest way to get started with the CLI is to practice exploring a model.

This summary is produced by the author, and not by AI.

What is the Tabular Editor CLI?

The Tabular Editor CLI (TE CLI) is a command-line interface that makes it possible to view, query, build, manage, and test semantic models programmatically. This is different from Tabular Editor 2 or 3, which have a graphical user interface (GUI) and buttons that you click to take actions and make changes. In the CLI, you type and submit te <command> like:

• te connect to connect to a model
• te ls to list its contents
• te vertipaq to run the VertiPaq Analyzer
• te add Sales/Revenue -t Measure -i "SUM('Sales'[Amount])" --save to add a measure

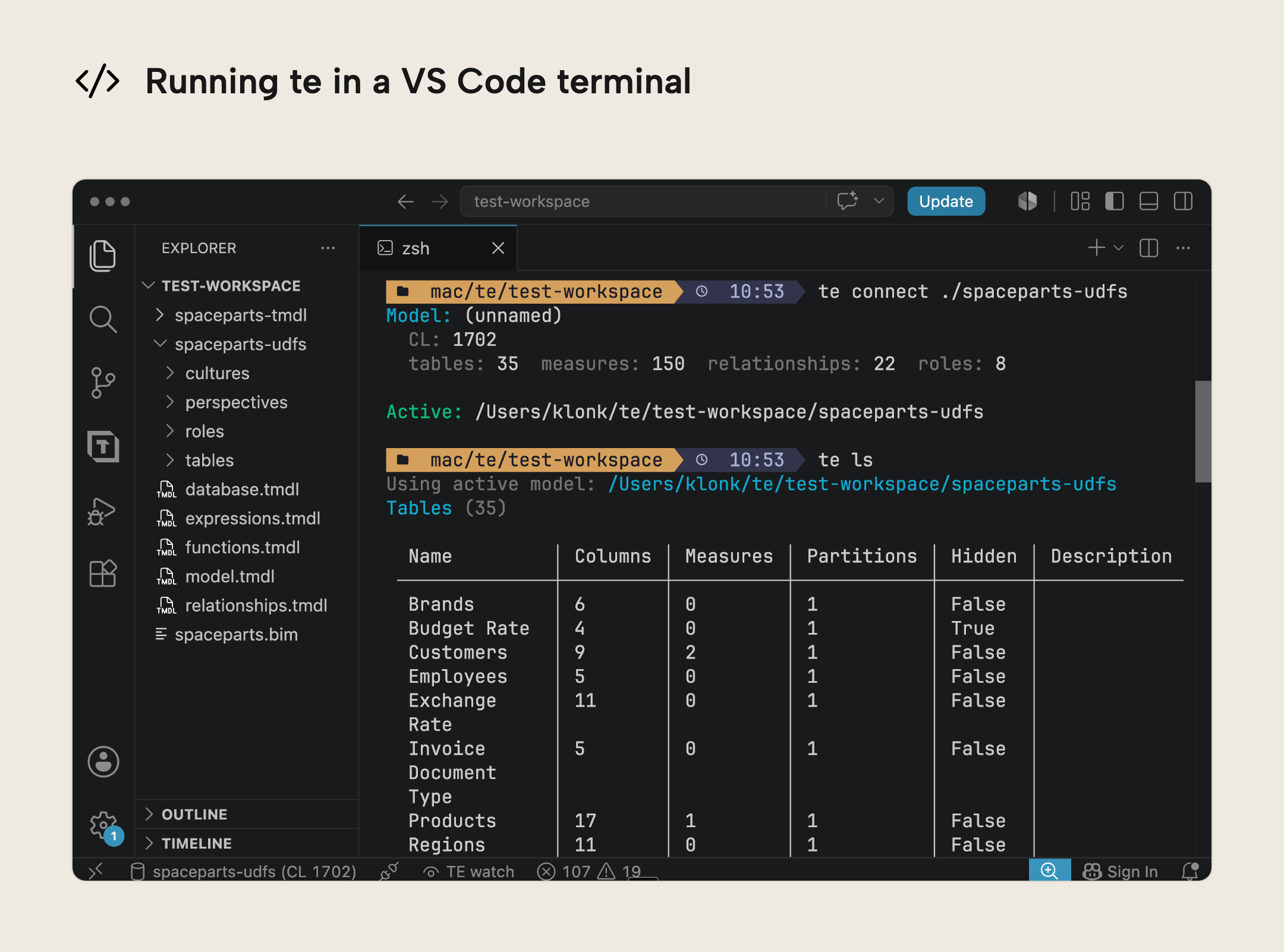

You can also execute these commands in a pre-written script. This typically happens in the terminal. A terminal can be a standalone application that you open (like the default Windows or Mac terminals) or embedded in an application like VS Code or Cursor where you can see files in an explorer:

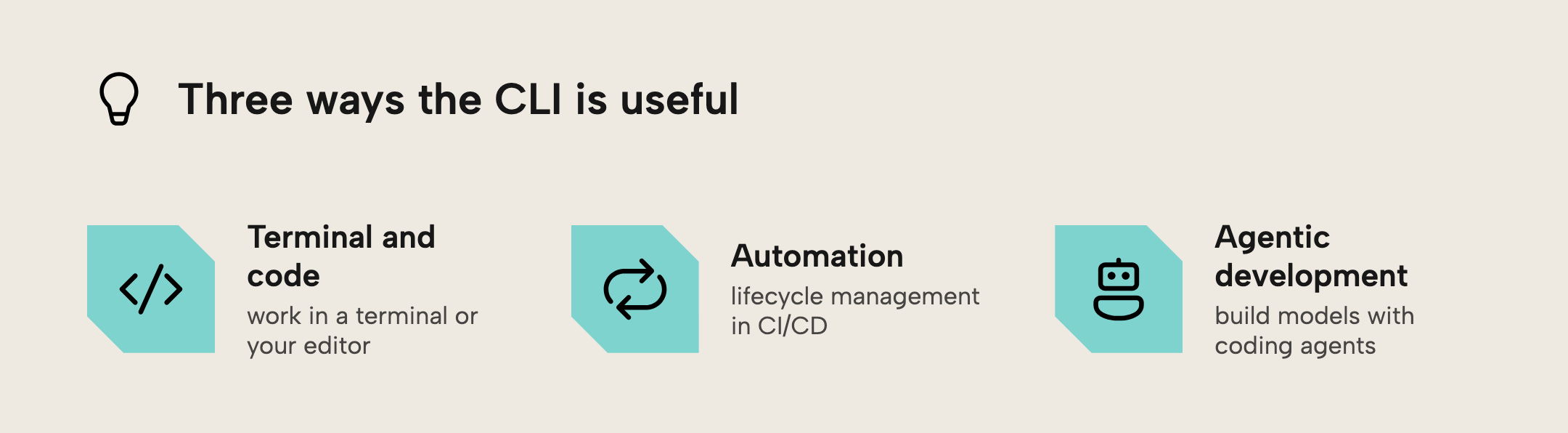

This isn't the only way to use the CLI, though. In short, it's useful for three main scenarios:

• Working with semantic models in the terminal or in code
• Automation and lifecycle management in Continuous Integration / Continuous Delivery (CI/CD) pipelines
• Agentic development of models with coding agents

We discuss these in the following sections.

What is the CLI useful for?

If you are used to primarily working with GUIs (Graphical User Interfaces), it can be challenging to figure out how to get value out of the TE CLI. This is made more difficult by the fact that CLIs and terminals were never designed for broad human consumption, even though interactive mode (te interactive) exists specifically to make the CLI more approachable to work in directly.

Instead, you should understand the CLI as a supplement that enables workflows not available with Tabular Editor 3 and amplifies tooling and infrastructure you may already have. While this is exciting as a turbo boost to certain ways of working, if those ways are new to you then it might be hard to see or realize the value. In this article, we discuss the types of workflows enabled and amplified by the CLI and provide simple examples for each.

CLI as an enabler

The CLI is most interesting for use cases where the Tabular Editor GUI simply isn't available. This falls under 3 main categories:

• Cross-platform work
• Continuous Integration / Continuous Delivery
• Agentic AI

Cross-platform work

The most obvious benefit of the CLI is if you use Mac or Linux. Both Tabular Editor and Power BI Desktop are only available on Windows, which means you either have to run Windows in a virtual machine or depend heavily on the web authoring experience. With the CLI, however, you can use interactive mode to explore and review your model.

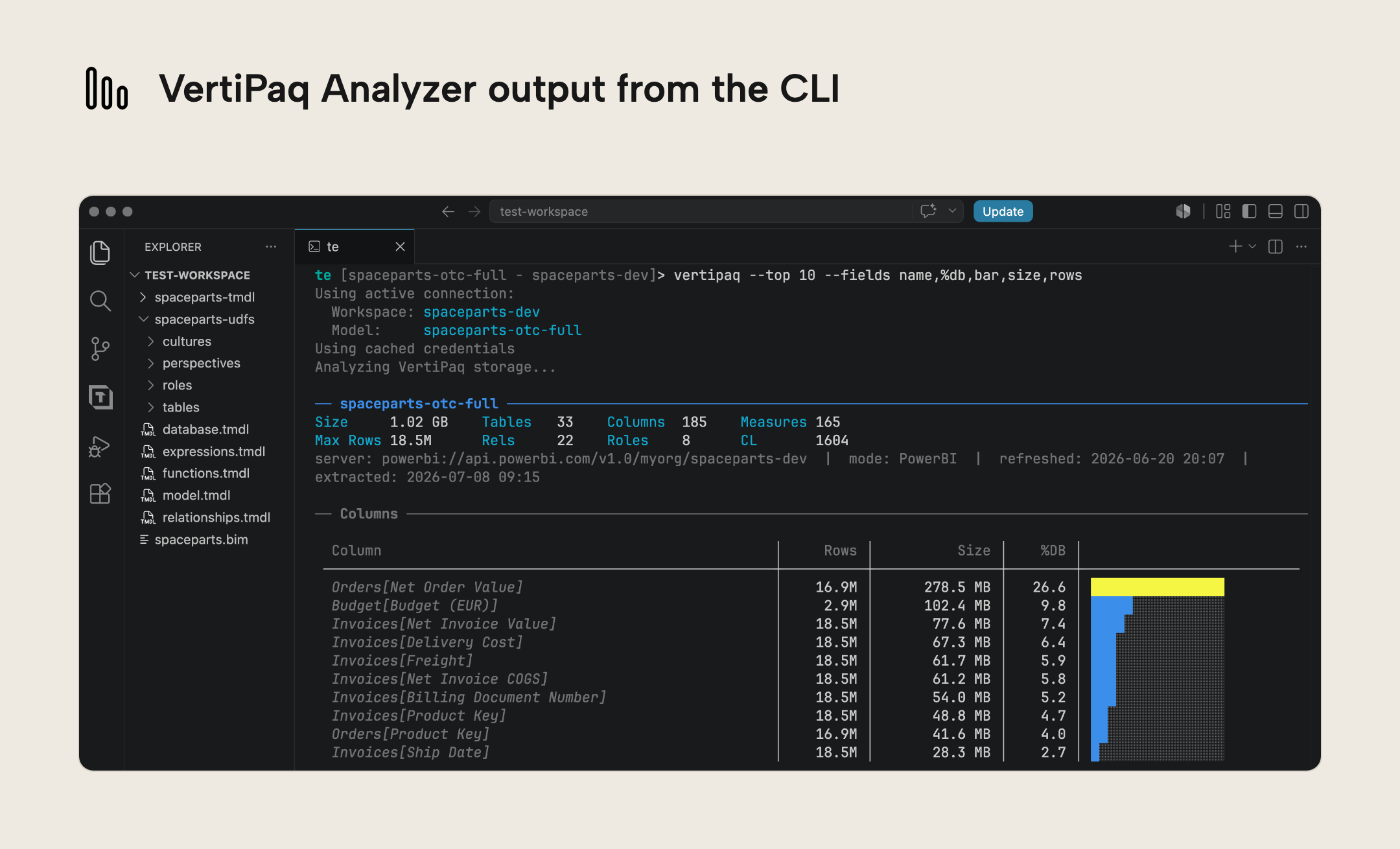

One example is using the VertiPaq Analyzer to see what is taking up space in your model. If you are on a Mac, then you don't have access to TE3 or DAX Studio which are the main ways to run the VertiPaq Analyzer. However, with the TE CLI, you can run a single command:

te vertipaq --top 10 --fields name,%db,bar,size,rows

And you will get a detailed analysis of your model:

You can then run more specific commands to look at a specific subset of that, or you could export the information as a VPAX file to be analyzed elsewhere. More importantly, though, you can follow guidance from us or from Microsoft to reduce the memory footprint, then run te refresh and examine the te vertipaq results again to check for improvements.

Continuous Integration

CI/CD is the practice of using source control and automated tests so that multiple developers can work on the same project and commit code at a high frequency.

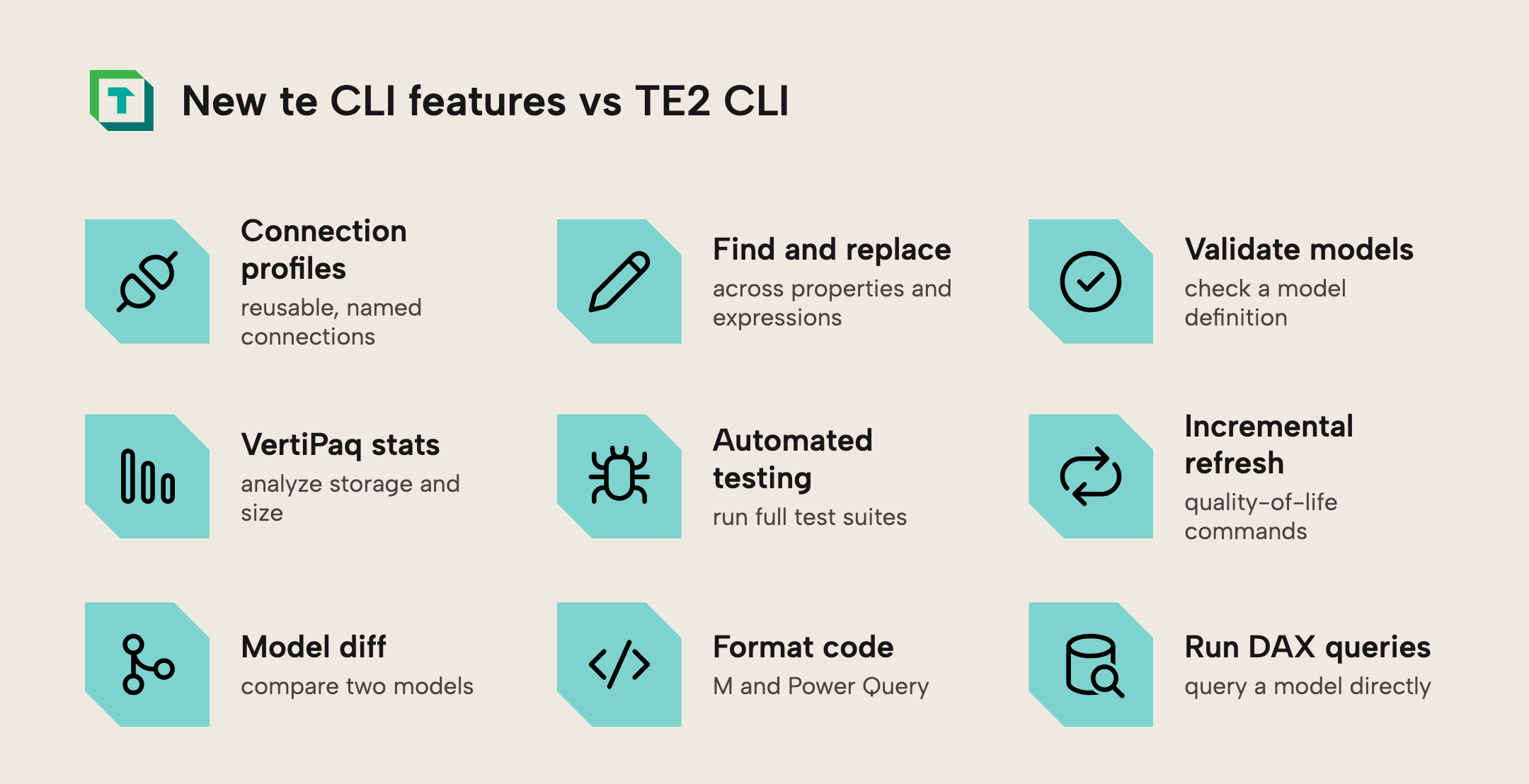

As you can imagine, writing tests for traditional programming languages is simpler than it is for semantic models since there are often decades of tooling to support this. Many folks today use the TE2 CLI to run checks automatically as part of a CI/CD workflow (such as DAX assertions, best-practice rule checks, or schema validation). This is even recommended in the official guidance from Microsoft to scale and mature your Power BI deployments and usage. However, there are limitations. The Tabular Editor 2 CLI was difficult to set up and use for most people. In contrast, the new TE CLI supports everything the TE2 CLI did (including reverse compatibility to completely replace the TE2 CLI without disruption) and much more. To name just a few:

• Connection profiles
• Find/Replace text in object properties and expressions
• Validate a model definition
• Obtain VertiPaq Analyzer statistics
• Support for automated testing suites
• QoL commands for incremental refresh
• Comparing two models with a diff
• Formatting M / Power Query code

Now, imagine after reviewing the size of your data model, you realize that Auto Date/Time is on and taking up unwanted space. You want to prevent this in all future models, so you set up a GitHub action or Azure DevOps Pipeline that uses the following command to make sure that you get an error if any model has Auto Date/Time on.

te bpa run --rule DISABLE_AUTO_DATETIME --fail-on error --ci github --auth env

Basically, you can configure your GitHub or Azure DevOps Repo to automatically run this command at certain events. Instead of manually reviewing whether models are following good practices, you can just run tests with the BPA, DAX queries, and custom scripts, which check these things for you (and fix them). This is much faster and more efficient, especially when you use agents.

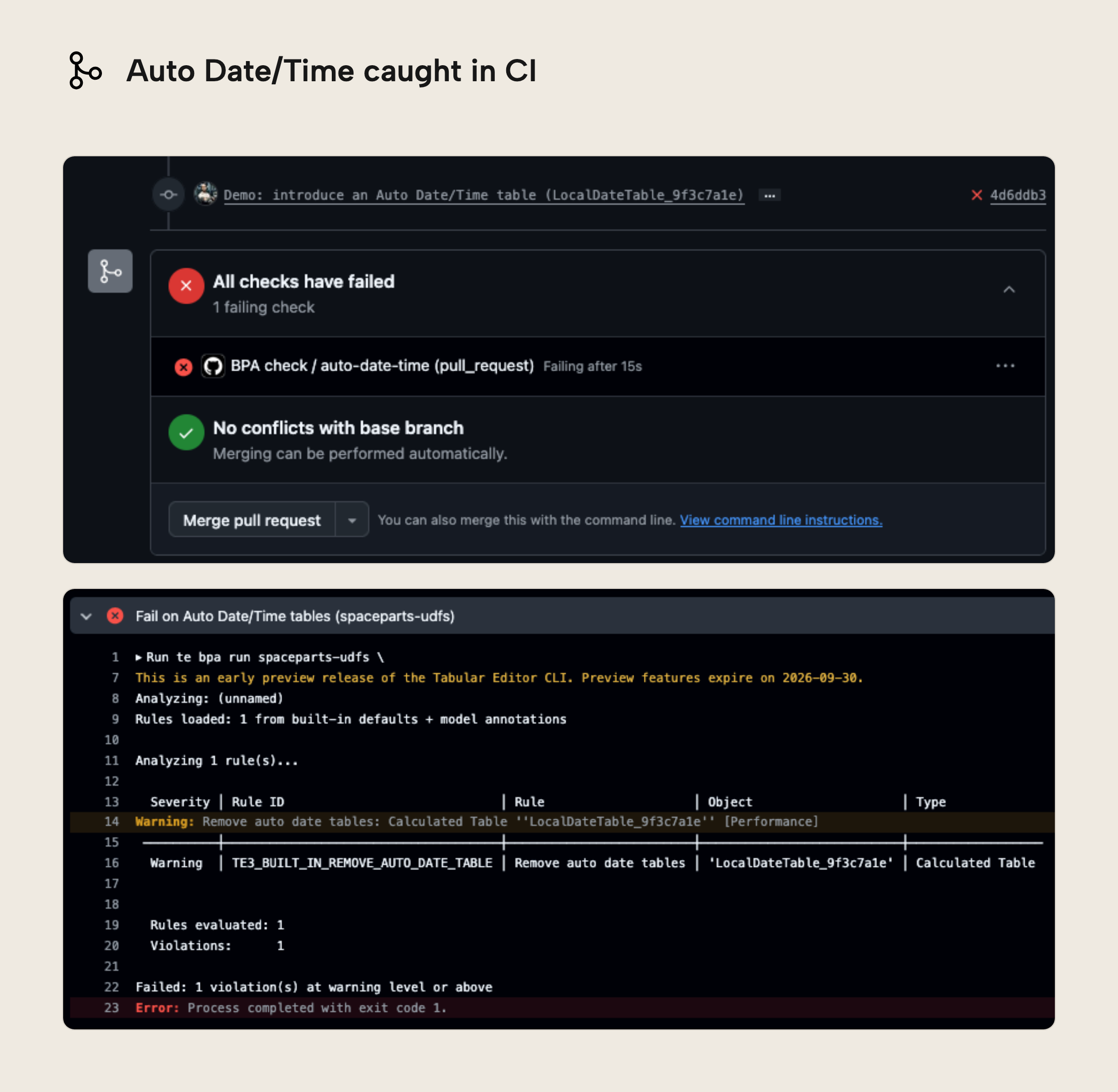

This is very useful to scale and automate your development, particularly when working with multiple team members or agents on the same model. You can see an example of this below, where an agent has changed the model and submitted the change for review. The automated test scripts (CI) run with the example rule, which detects Auto Date/Time is enabled, and returns an error:

Agentic workflows

While Tabular Editor 3 does come with the AI Assistant, that is embedded in the Tabular Editor GUI and is specifically designed to involve a human guiding it and approving actions. For a fully agentic workflow, you want either a CLI or a Model Context Protocol (MCP) server. These provide the agent with specific tools and allow it to work autonomously.

In our experience, while MCP servers like the Power BI Modeling server can be useful for agents, CLIs are more concise and flexible. They can be chained with existing command line utilities that the agent already knows how to use. This is especially true for the TE3 CLI, which provides detailed error messages and a variety of output formats.

Consider the following example: Typically, when you rename a field in the model or move a measure to a different table, this "breaks" downstream reports. Such a pain in the butt! But using the CLI, you can "chain" this with a command using the pbir-cli, so that the model change happens at the same time as the fields are renamed in the report, preventing the issue:

# In the model: rename the measure, fix the DAX that calls it, and validate
te mv "Actuals/Actuals MTD" "Actuals/Actuals MTD V2" --save
te replace "Actuals MTD" "Actuals MTD V2" --in expressions --save
te validate --errors-only

# In the report: rewrite every binding that still points at the old name
pbir fields replace "Data Goblins Flash Report.Report" --from "Actuals.Actuals MTD" --to "Actuals.Actuals MTD V2"
pbir validate "Data Goblins Flash Report.Report" --fields

Here's a video demonstrating this:

In short, this opens up a lot of scenarios where an agent (or you) can modify multiple models or items (or item types) at once, combining CLI tools and even custom scripts. It's convenient, simple, and also repeatable.

More importantly, however, is that if the agent is making any changes to the underlying model, it can run te validate to validate the model, DAX expressions, and relationship integrity. This is particularly useful if you're using an agent to directly modify TMDL files, or doing so yourself.

CLI as an amplifier

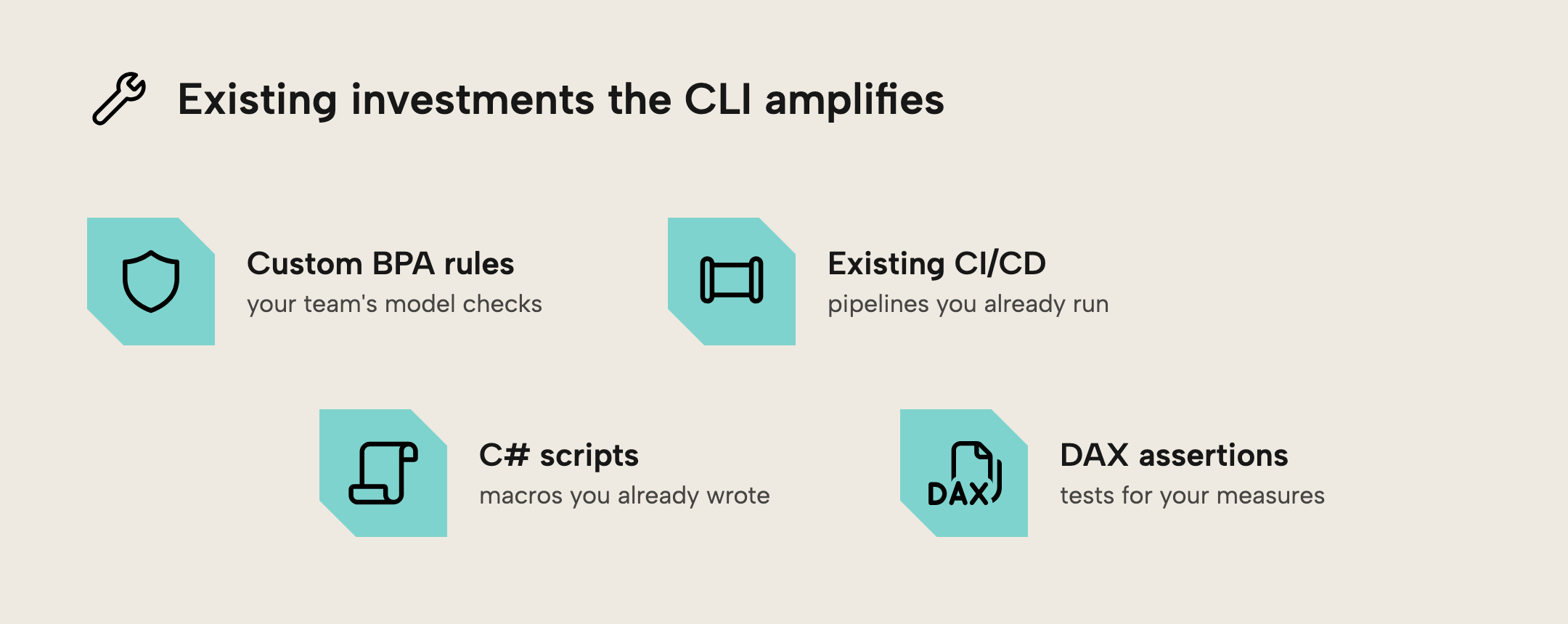

While the most obvious use cases for the CLI are things you simply couldn't do before, the tool benefits the most from existing investments you already have:

• Custom BPA rules: your team's model checks now run automatically in every pipeline, not just on demand.
• Existing CI/CD: slot the CLI into pipelines you already maintain instead of building new ones.
• C# scripts: the macros you wrote for TE3 become repeatable steps in an automated build.
• DAX assertions: turn "this measure should equal X" into a test that fails loudly when it doesn't.

Now with the CLI:

• If you are using the TE2 CLI, you can expand what it can do and use cheaper Linux runners, saving a lot of cost.
• You can take existing cleanup scripts in C# and now make them part of your build process.
• You can use and expand your BPA rules.

Starting from scratch

With all of this, however, you may still be feeling a bit lost. Maybe you don't have much experience with CLIs and terminals, or maybe you don't have the existing investments in TE3, CI/CD, or AI. In that case, what is a good way to get started?

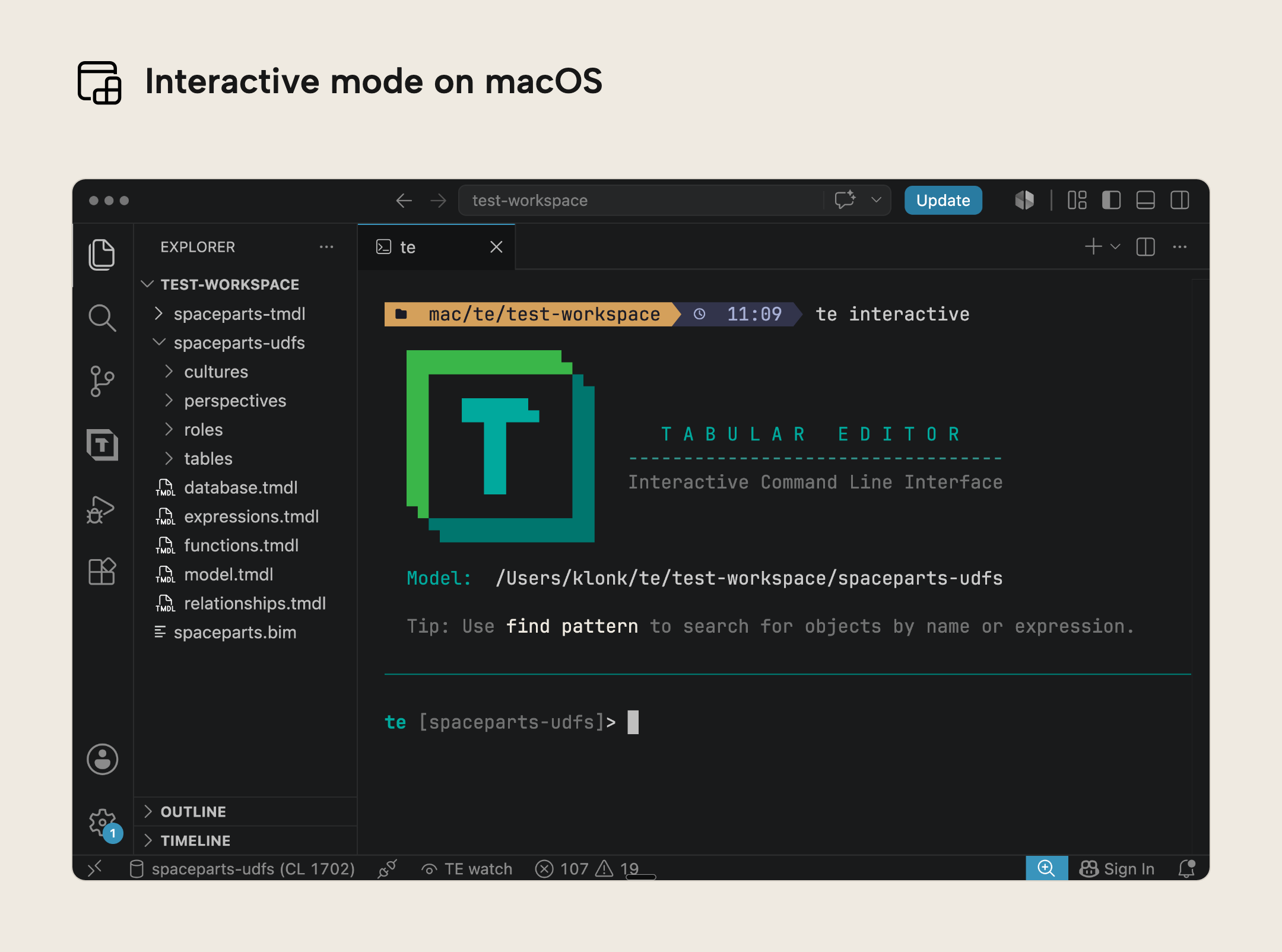

First, you will want to check out our interactive mode which acts more like a self-contained experience instead of having to run individual command line calls over and over again. When you are in interactive mode, you no longer need to specify te at the beginning of your commands.

Next, use --help on any command to see what it does - a good way to get familiar with te's flags in general - along with commands like status, ls (short for list), and get to orient yourself.

From there you can use commands like bpa, vertipaq, and deps (short for dependencies) to start to investigate the quality of the model. It's worth noting that these all have a rich set of parameters that allow you to be more specific, whether that's using bpa run --fix to automatically fix best practice violations or vertipaq --top 10 to look at the 10 largest model objects.

Finally, it's worth exploring how you can run DAX queries directly against your model with query -q "INSERT DAX HERE". Part of growing comfortable with the tooling is realizing that it's not just a read-only tool but allows you to run scripts, refresh your model, and even deploy it.

Further reading

• Tabular Editor CLI documentation (Tabular Editor Docs). The command reference and overview for the cross-platform te CLI, including the vertipaq and bpa commands used above.
• Building your Power BI CI/CD pipeline (Fabricated Insights). Daniel Patkos walks through a hands-on Power BI CI/CD pipeline that gates on the Best Practice Analyzer.
• TMDL, Power BI semantic modeling, and version control (lukasreese.com). Lukas Reese introduces TMDL as a text-based, version-controllable format, helpful background for driving models from the terminal.

In conclusion

The TE CLI earns its place not by replacing Tabular Editor 3, but by reaching the places the GUI can't: your Mac or Linux machine, your CI/CD pipeline, and your AI agents. If you already have C# scripts, custom BPA rules, or a CI/CD setup, the CLI amplifies that investment instead of asking you to start over. And if you are new to all of this, the fastest way in is to open interactive mode and practice exploring a model. Pick the one workflow that is most painful today, try it from the terminal, and build from there.
